This article contains installation instructions and firmware files for the Avocor AVE-40 interactive displays.

Firmware installation instructions

Checking your firmware version

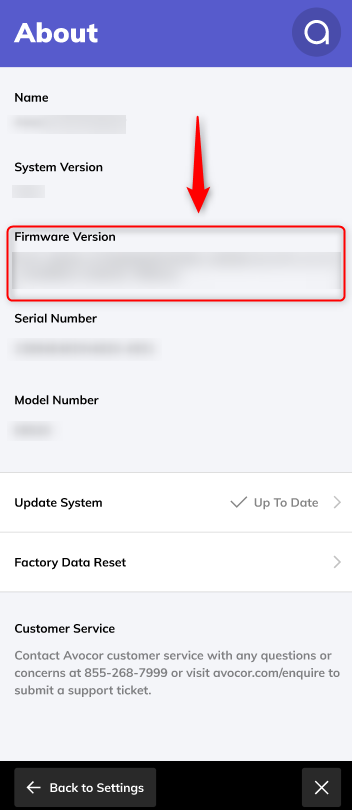

Prior to installing firmware, you should check your current version in the display's UiQ on-screen menu by pressing the gear icon button on the UiQ Home screen, the front panel keypad on the display, or on your E-series remote control unit. Once the side panel appears, tap the About menu tile, and check the Firmware Version section.

Over-the-air (OTA) updates

Required items

Connect the display to the network via:
- Ethernet/CAT5 (preferred)
- USB WiFi module

OTA update process

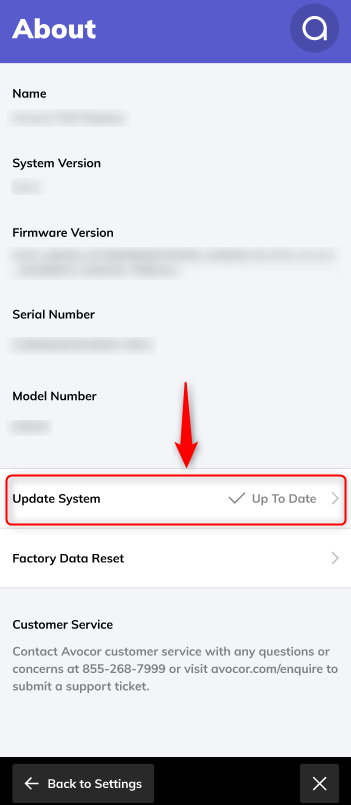

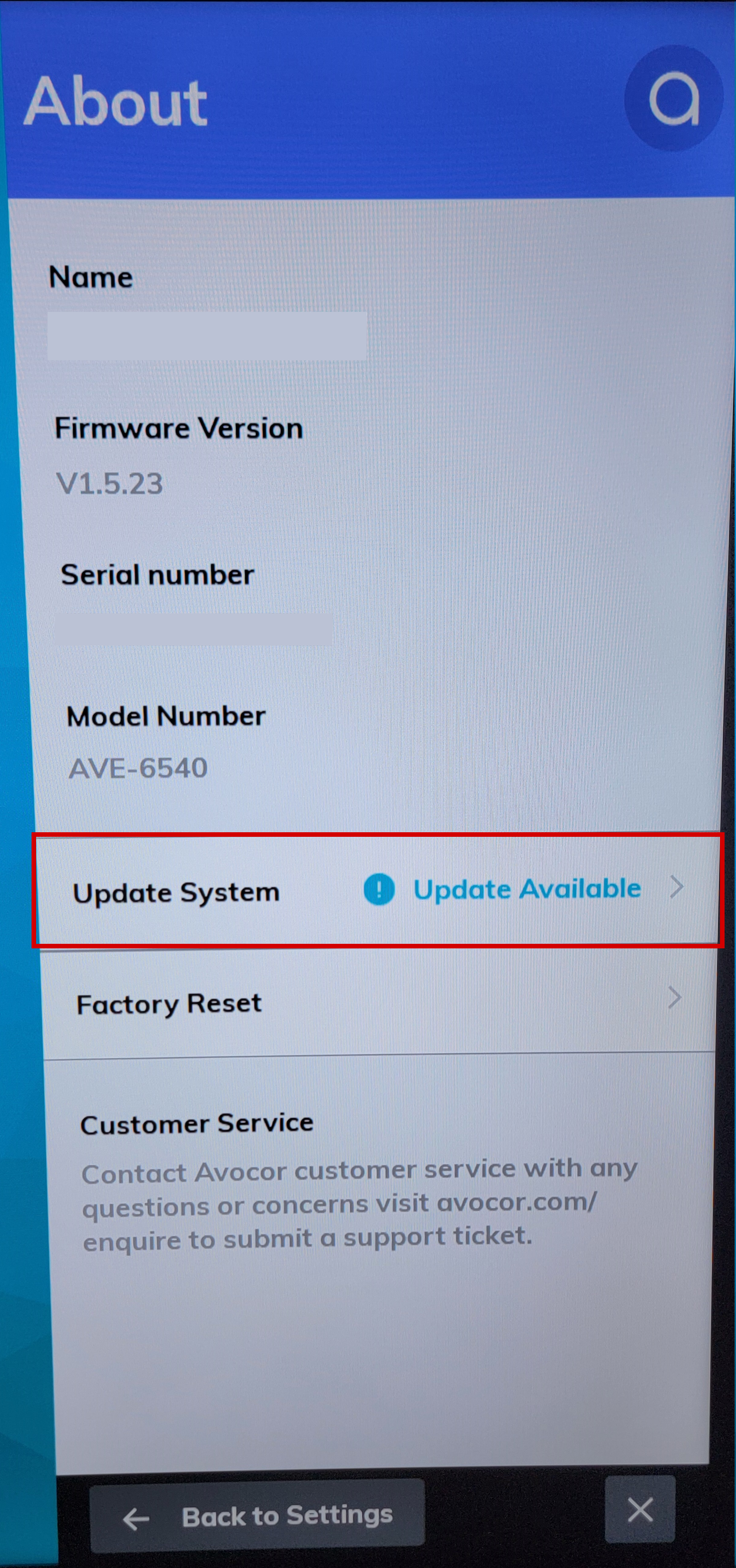

1. When a new firmware is pushed from our servers to the internet, you'll see "Update Available" on the Update System button - tap it to access the download page, where you can install firmware and Release Notes.

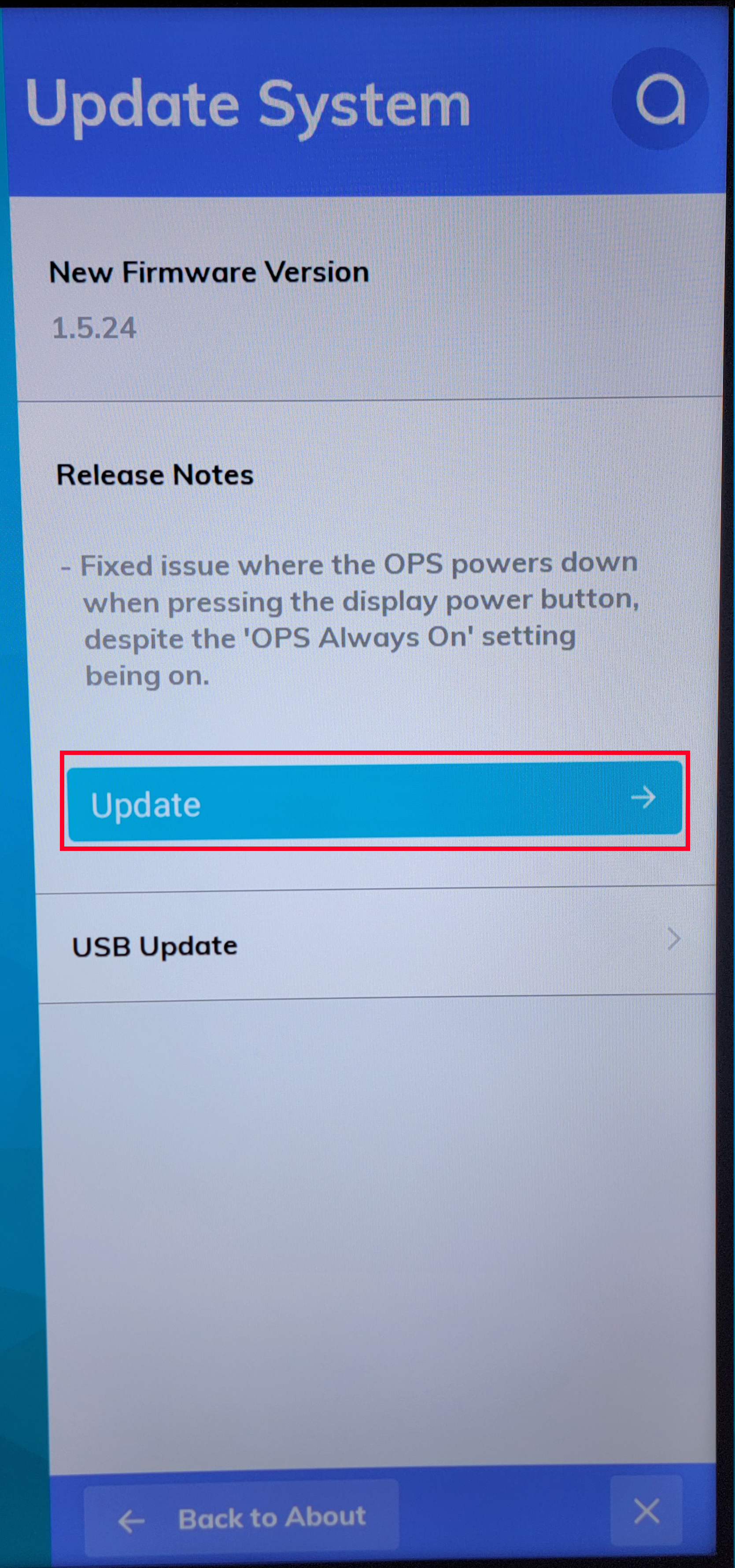

2. Tap "Update," if you wish to upgrade your unit's firmware.

3. Your display will reboot automatically once the update is finished - DO NOT press the power button until after the unit reboots into a usable condition.

4. Run a Factory Reset from the About menu once the update is complete (see below); you should also notice your Firmware Version has changed.

USB updates

Required items

FAT32 formatted USB drive.

Standard USB update process (update_signed.zip + BASECODE...zip)*

1. Download and extract the firmware ZIP file.

2. Load the update_signed.zip and BASECODE...zip files onto the root directory of your USB drive.

3. Plug the USB drive into the USB 2.0 Service Port on the left side of the display.

4. On the E-series display, open the UiQ Settings>About, then select USB Update.

5. Once a compatible USB and firmware has been detected, the Insert USB button will highlight and change to Apply Update.

6. Select Apply Update to begin installing the firmware. Tap confirm if any subsequent messages appear.

7. The update process is completed once the display reboots into a usable state - DO NOT interrupt the installation until it reboots.

8. Run a Factory Reset after completing installation.

USB Firmware and release notes

Click the version number to download.

Note: some older versions are unavailable to download at this time.

Release Date	Firmware Ver.	Notes
10/18/2024	1.5.24	Fixed an issue where the OPS powers down when pressing the display power button despite the "OPS Always On" setting being ON
5/21/2024	1.5.23	Fixed an issue with OTA updates
1/9/2024	1.5.2 (unavailable)	Fixed "OPS Always On" to persist after AC power cycle. Fixed an issue where a Home screen tile would reappear after being set to hidden. Optimized screen power logic. Optimized Fuse/display configurations sync.
9/28/2023	1.5.0 (unavailable)	Added Montage screen-sharing application to Home Screen. Added RiseVision digital signage application to Home Screen.
4/14/2023	1.4.33	Add Fuse Fix weather API Changed "Auto Power On"" logic. Changed Display>Picture>Advanced>Color Temperature options from ""Warm, Standard, Cold"" to Kelvin equivalents: 5000K, 7500K, 9300K Added additional UiQ Languages.
