General Overview

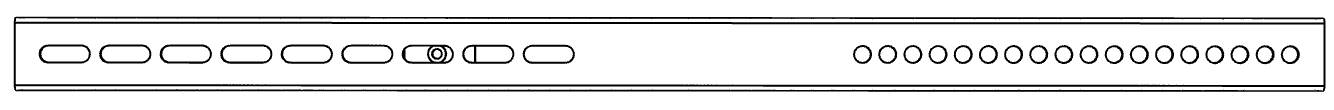

The diagram above features the back of the Avocor L series 105” display along with the box-provided wall mount projected over it. For a more detailed view, click HERE. It is important to note that consumers are able to change the locations of the wall mount bracket itself so that the display can either sit higher or lower. The top screw hole of the wall mount bracket (pictured below) directly influences this. Ex: Hole A sets display the tallest, while hole B sets display the shortest. See Figures 1.0 and 1.1 for more details on where best to position your mount bracket / wall mount plate.

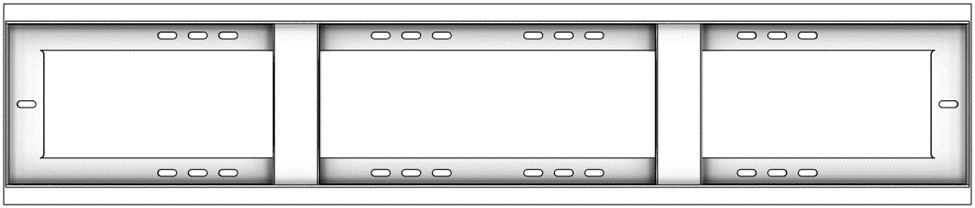

Setting up your wall mount plate
Hardware included
- 1x Wall Mount Plate
- 2x Wall Mount Brackets
- 10x Washers
- 10x Phillips/hex lag screws
- 10x Concrete anchors
Once you have installed the wall mount bracket to the back of the AVL-1050 display, the next step is to set up the wall mount plate for installation. The wall mount plate must be installed into a wall with proper studs in order to support the weight of the display. Additionally, use the before mentioned Figure 1.0 chart to find the location of your in-wall screws from the TOP/BOTTOM of the display in order to install the wall mount plate. Simply measure from the top/bottom of where you would like your display to be located at and measure to the in-wall screw locations for the wall mount plate. Additionally, in Figure 1.1 there are suggested heights for mounting the AVL-1050 display that work for most setups.
| Figure 1.0 | Distance from bottom of AVL-1050 to wall mount plate in-wall top screw | Distance from bottom of AVL-1050 to wall mount plate in-wall bottom screw | |||
| Top of Wall Mount Bracket Screw Position | A | 16 3/8 in | 41.593 cm | 9 in | 22.860 cm |
| B | 22 5/8 in | 57.468 cm | 15 1/4 in | 38.735 cm | |
| Be sure to add the floor → bottom of display height to the values presented for wall mount bracket holes A and B for best installation. | |||||
| Figure 1.1 | Suggested Wall Mounting Height | ||||
| Distance from floor to wall mount plate in-wall top screw | Distance from floor to wall mount plate in-wall bottom screw | ||||
| Top of Wall Mount Bracket Screw Position | A | 55 3/8 in | 140.653 | 48 in | 121.920 cm |
| B | 61 5/8 in | 156.528 | 54 1/4 in | 137.795 cm | |
| Mounting height reference is set 39" from floor + length from bottom of display to in-wall screws for wall mount plate | |||||
