This article contains a guide and download for HDCP firmware for Avocor 11th and 12th generation OPS modules.

If you experience flickering of the image signal from your OPS module, this firmware update will resolve the issue.

Install Instructions

1. Download the .zip file and extract it in the OPS's file directory.

2. Run the executable file

> "ITE_FWUPDATE5_x64_d100.exe" for G12 OPS

> "IT6563_FwUpdate.exe" for G11 OPS

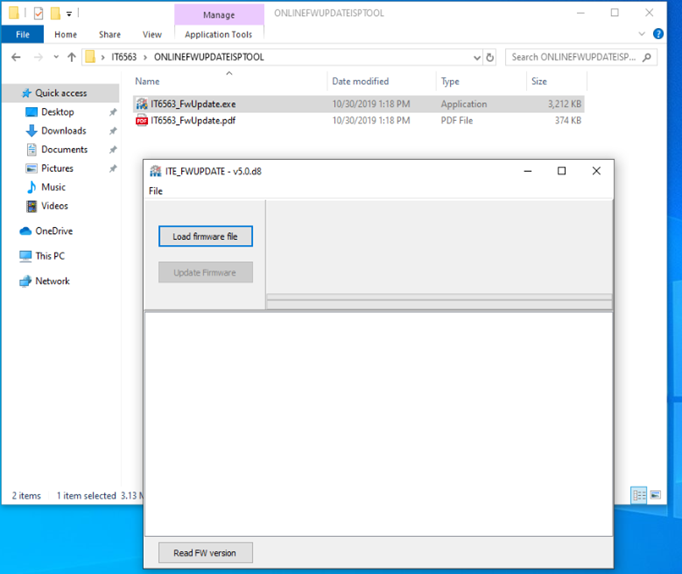

3. Click Read FW Version first, to confirm the currently installed HDCP firmware version. The latest version is v19292. This update is recommended if your version is lower.

4. Click Load firmware file and select the "it6563FN_HDCP_Repeater_V19292.bin" file.

4. Click Update Firmware

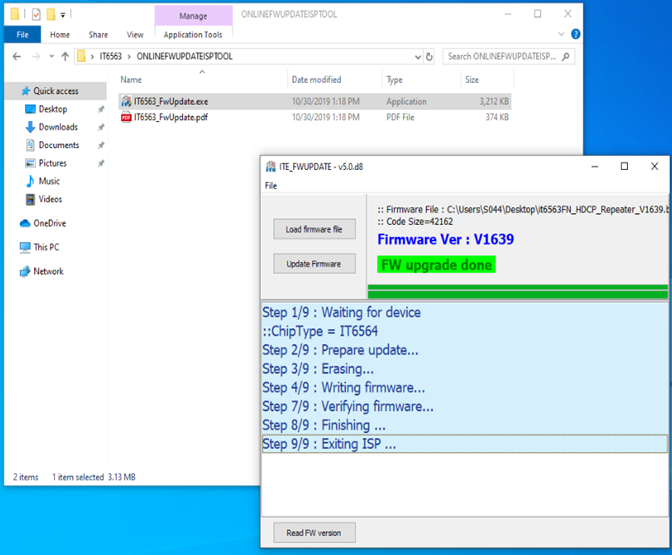

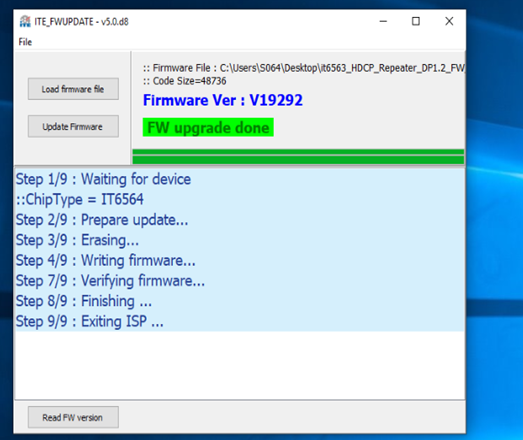

5. Once you see "FW upgrade done", reboot the OPS and you're done!

Download

Compatible Model:	Download
AVC-OPSi5-G11 AVC-OPSi7-G11	Gen 11 HDCP Firmware
AVC-OPSi7-G12	Gen 12 HDCP Firmware
