AVK-xx10 Firmware & Installation Guide

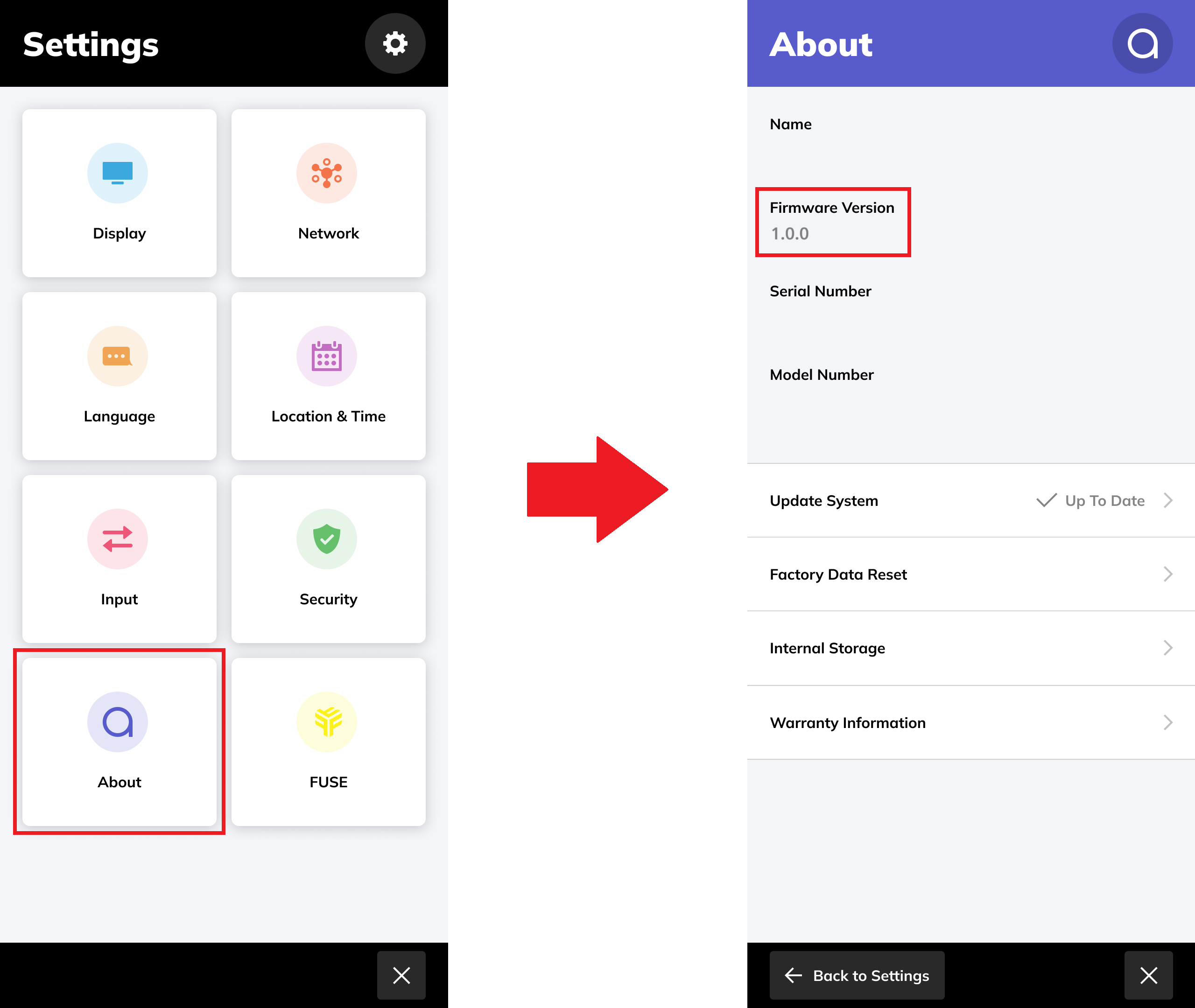

Checking your firmware version

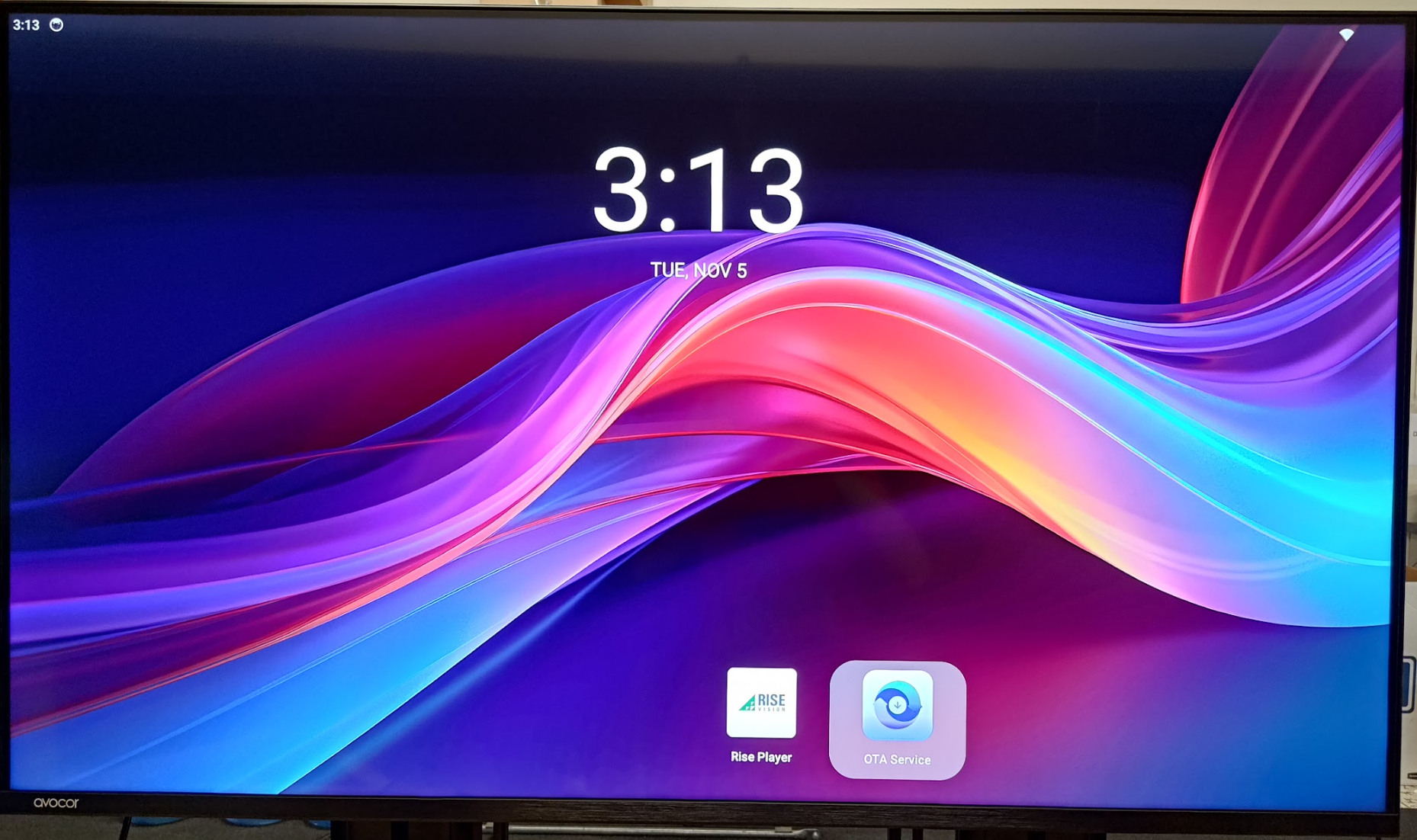

Prior to installing firmware, you scan check your current version by clicking on the OTA Service app on the Android Home screen and it will display your current version.

Over-the-air (OTA) updates

OTA updates are supported from v0.0.10 and on.
This guide is intended for use when your device is on early firmware (below v1.0.0).

Required items

• Connect the display to network via WiFi or Ethernet
• Avocor Remote

OTA update process

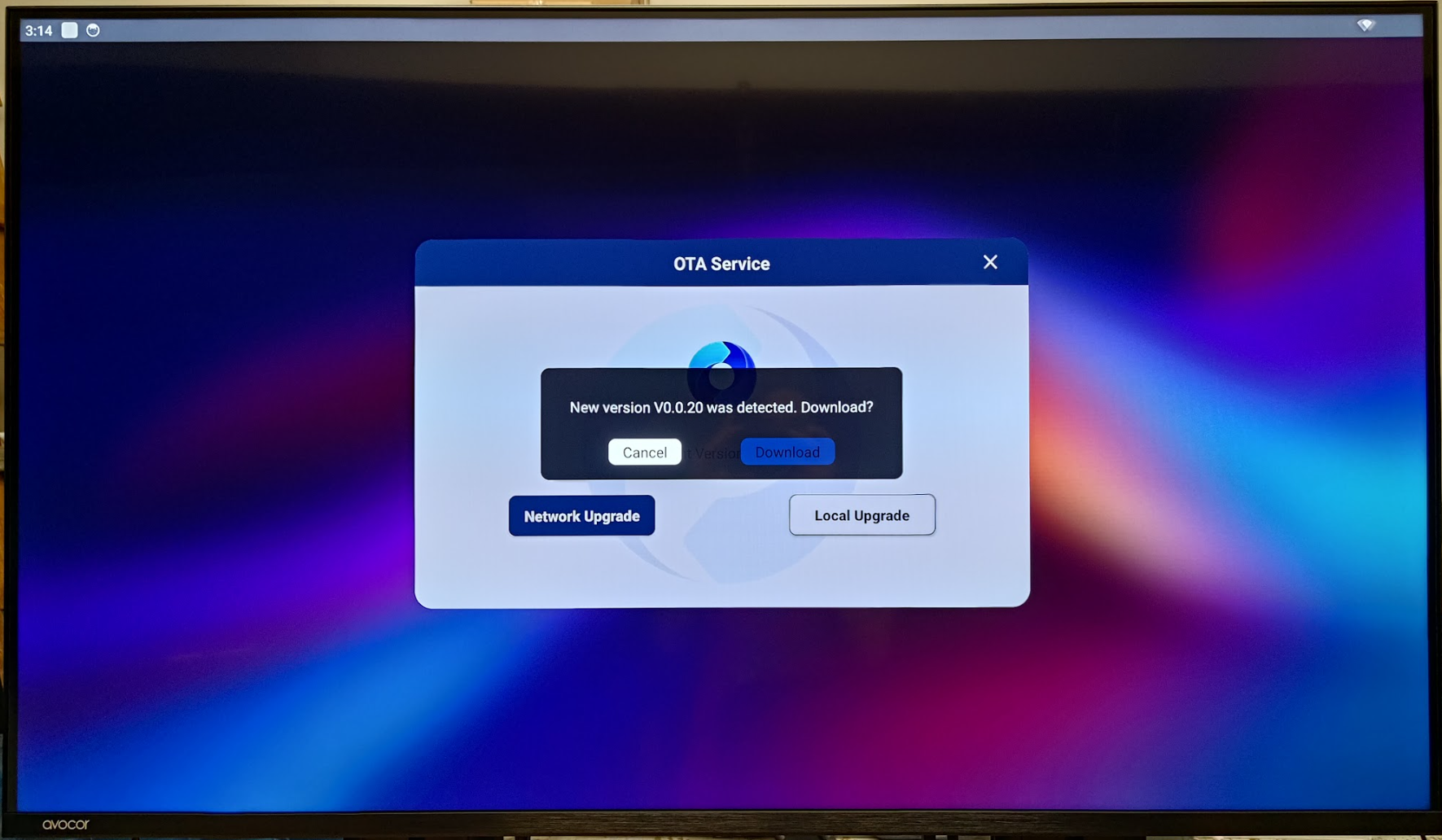

1. Click on the OTA Service app on the Android Home Screen

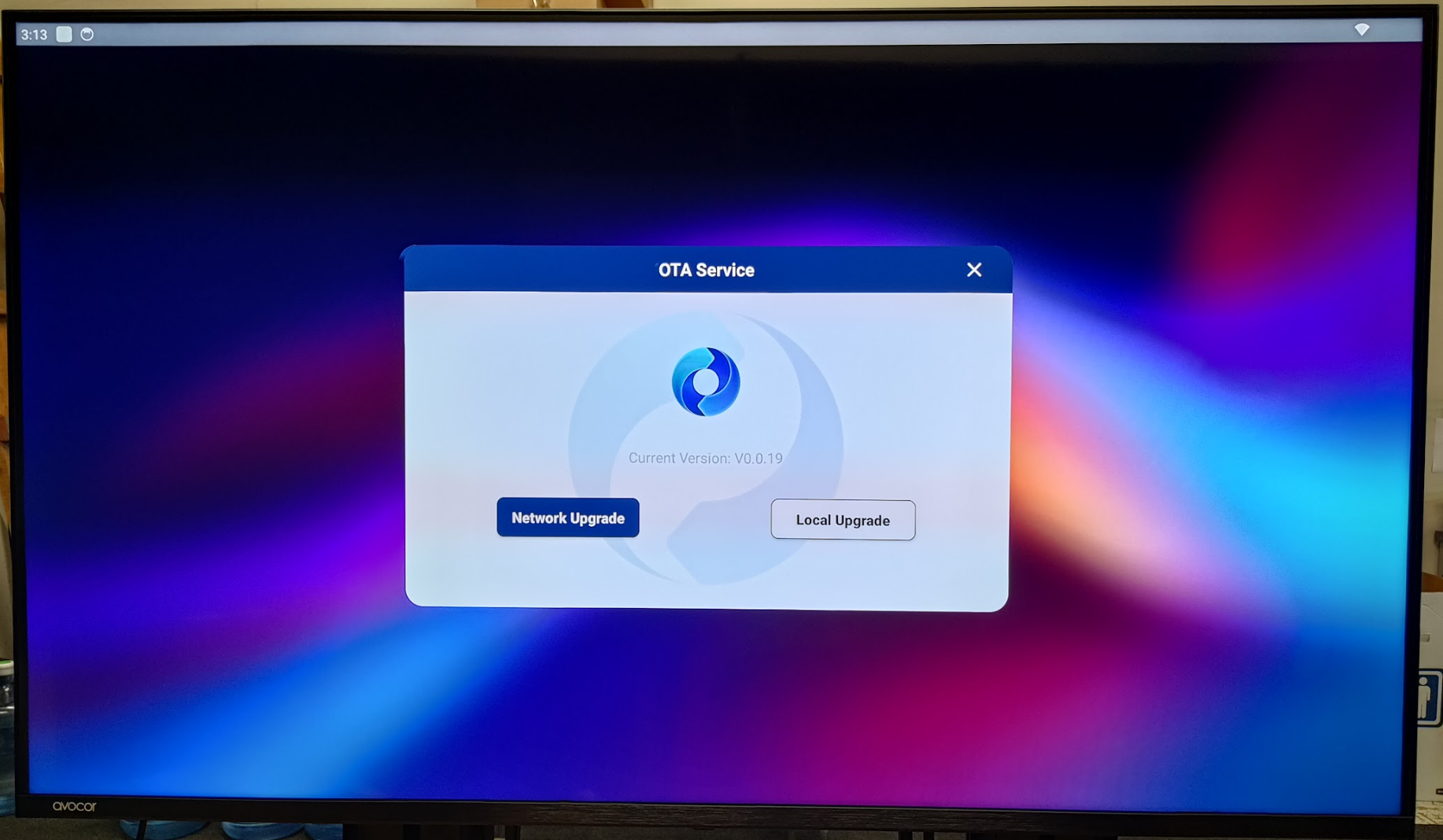

2. Click Network Upgrade

3. Click Download

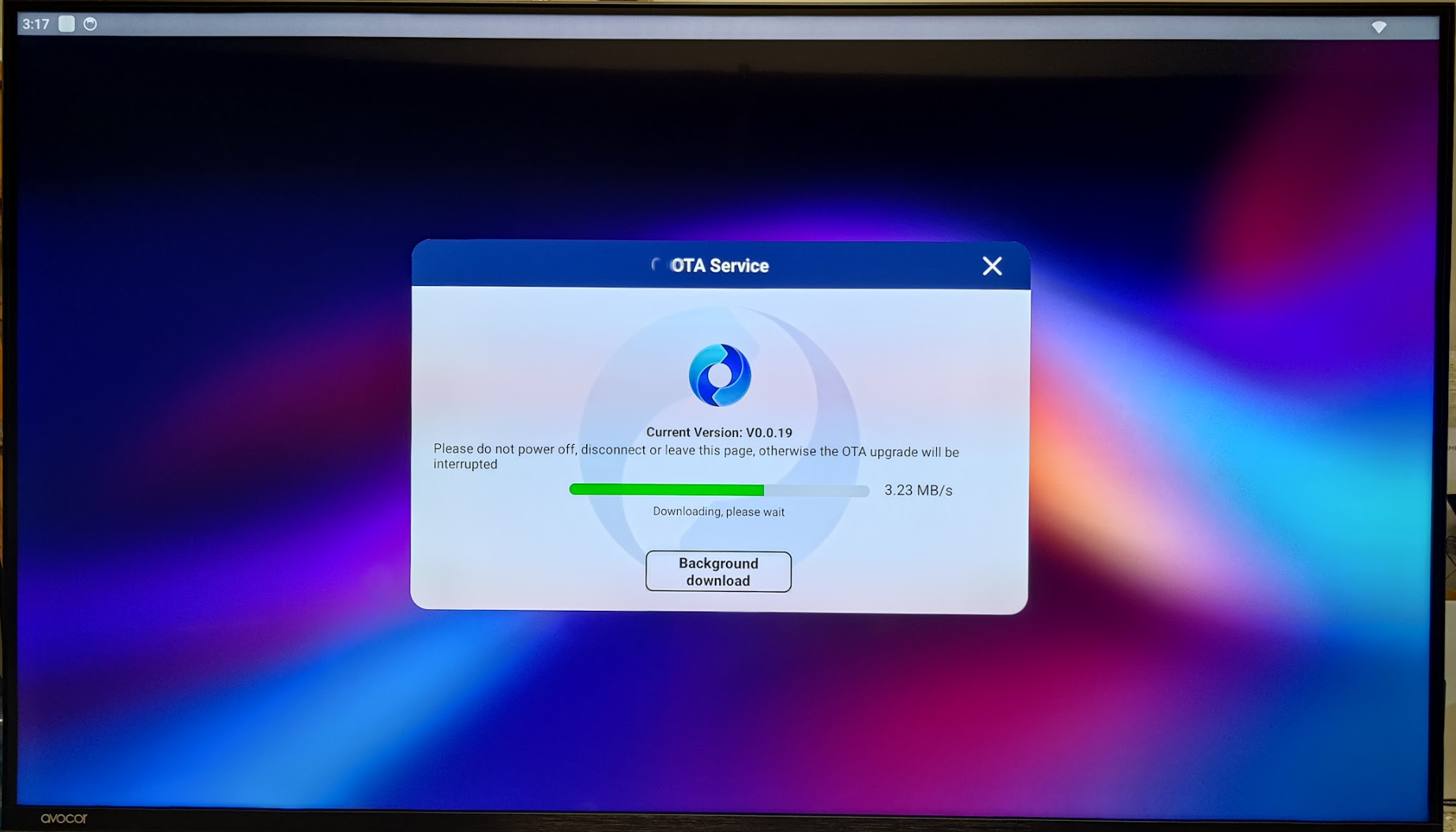

4. Wait for the firmware to download

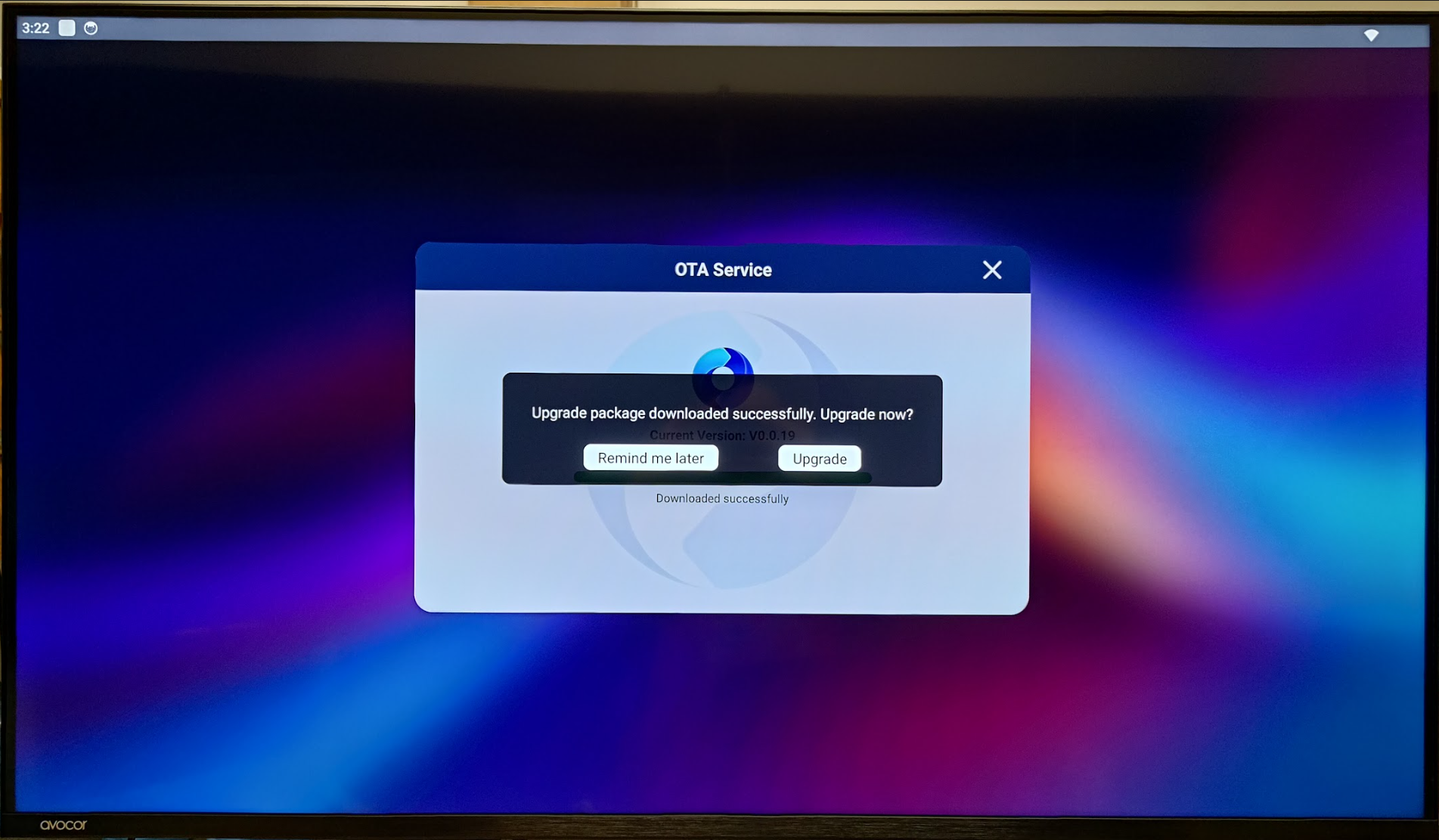

5. Click Upgrade

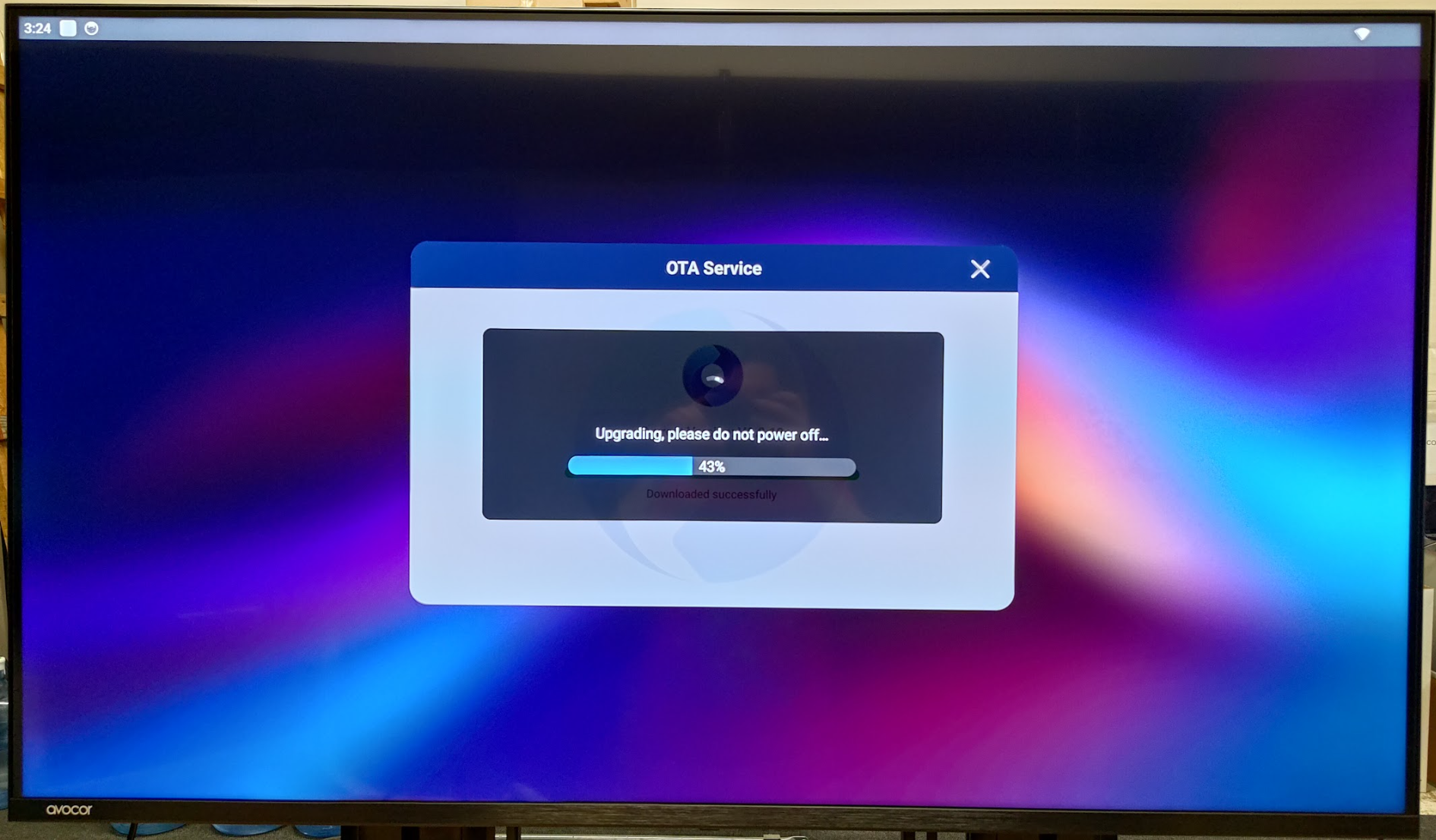

6. Wait for the firmware to be installed

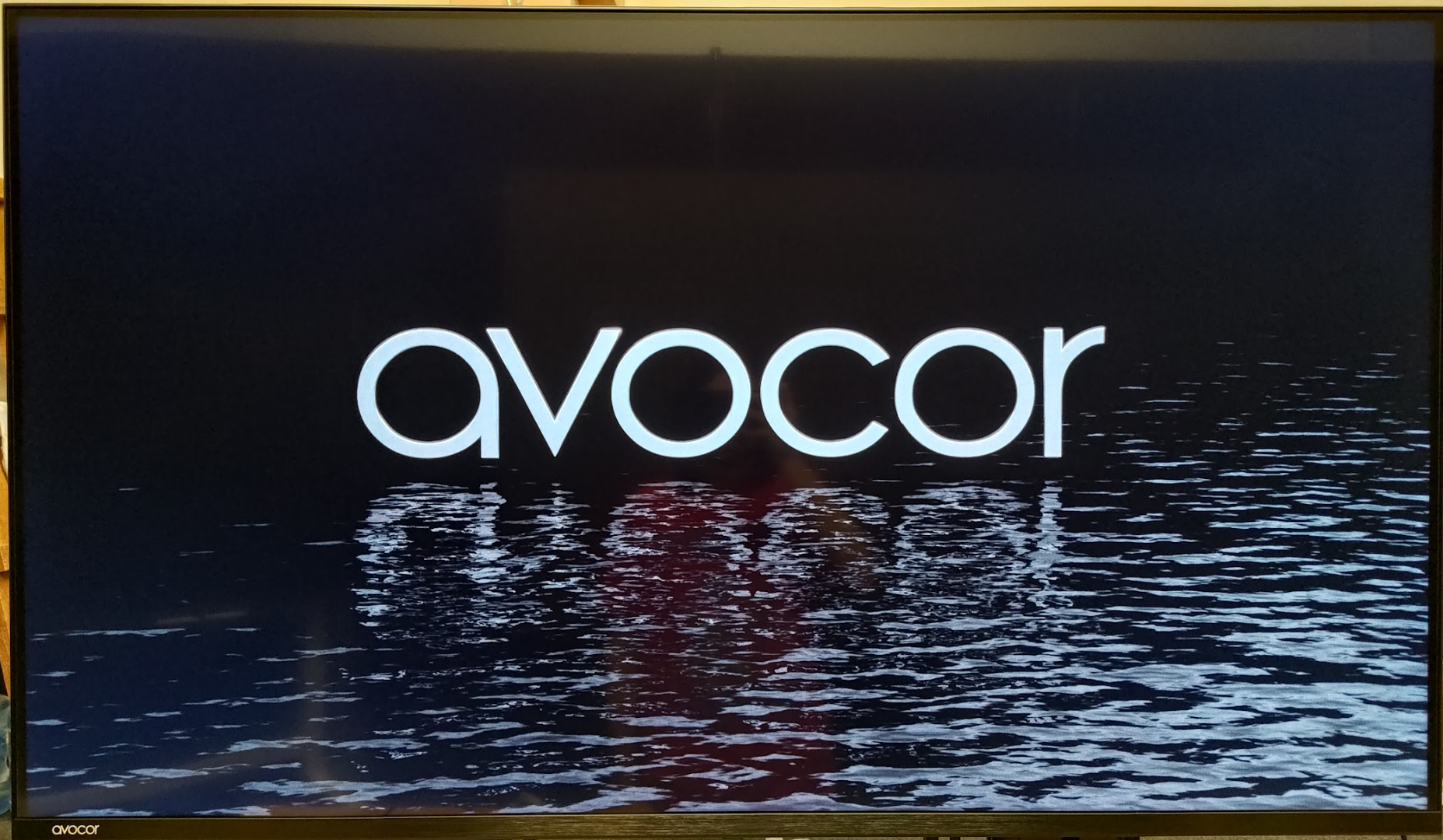

7. The device will automatically reboot

8. If you see the "Change Project ID" popup, click reboot by pressing OK on the Avocor remote

9. The device will automatically reboot

10. In the Android Menu, perform a Factory Reset

> Click the Settings button on the Avocor remote

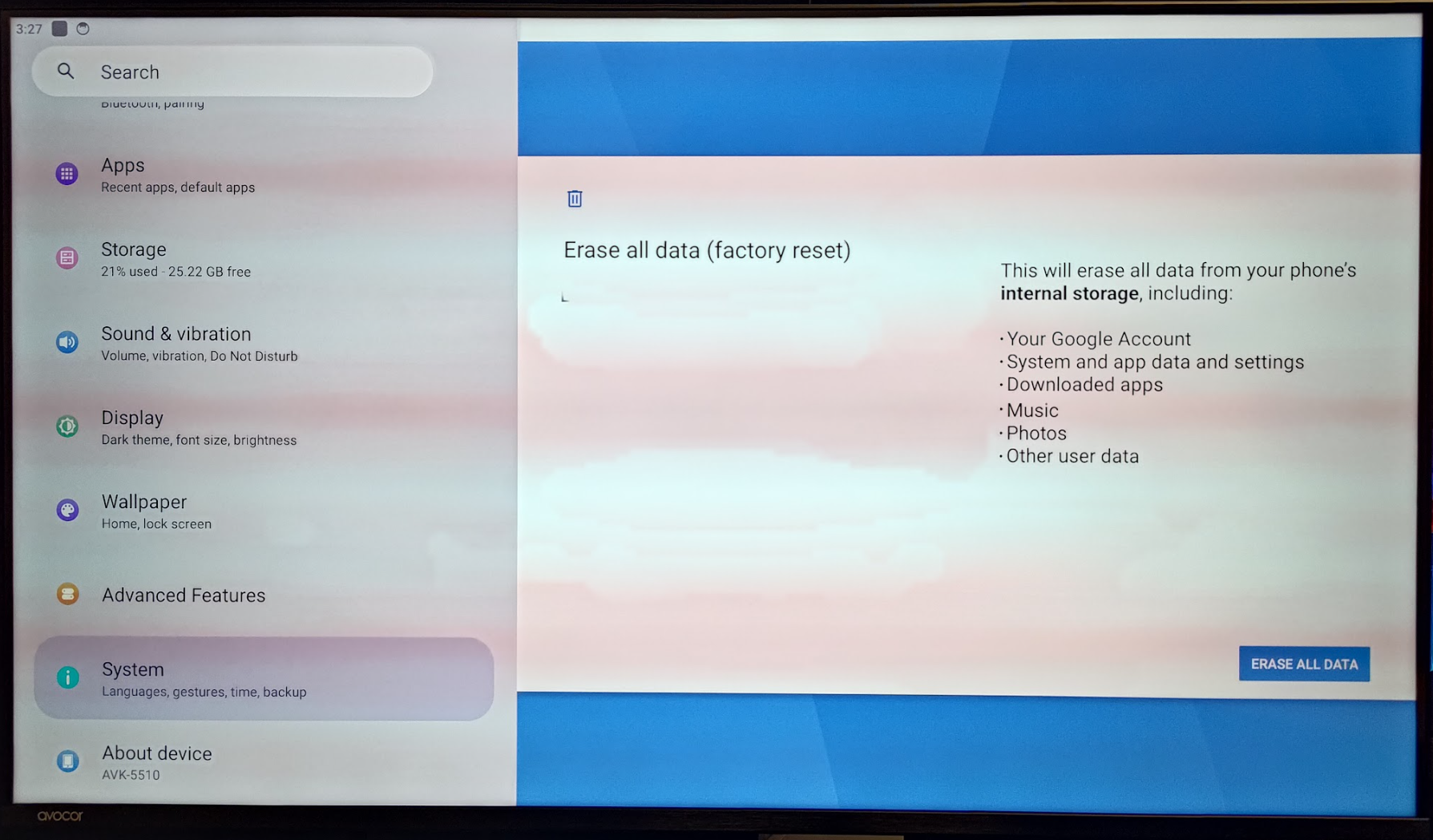

> Navigate to System 🠆 Reset options 🠆 Erase all data (factory reset)

> Click ERASE ALL DATA 🠆 ERASE ALL DATA

11. Once your device completes the factory reset, your firmware upgrade is complete!

USB updates

Required items

• FAT32 formatted USB drive
• Avocor Remote

USB update process

1. Download the firmware from the table at the bottom of this article

2. Format a USB drive as FAT32.

3. Extract the contents of the .zip file to the USB drive in the root directory.

4. Your USB drive should have three files on it as per the below picture:

5. Insert USB drive into the USB3.0 port of the display mainboard

6. Click on the OTA Service app on the Android Home Screen

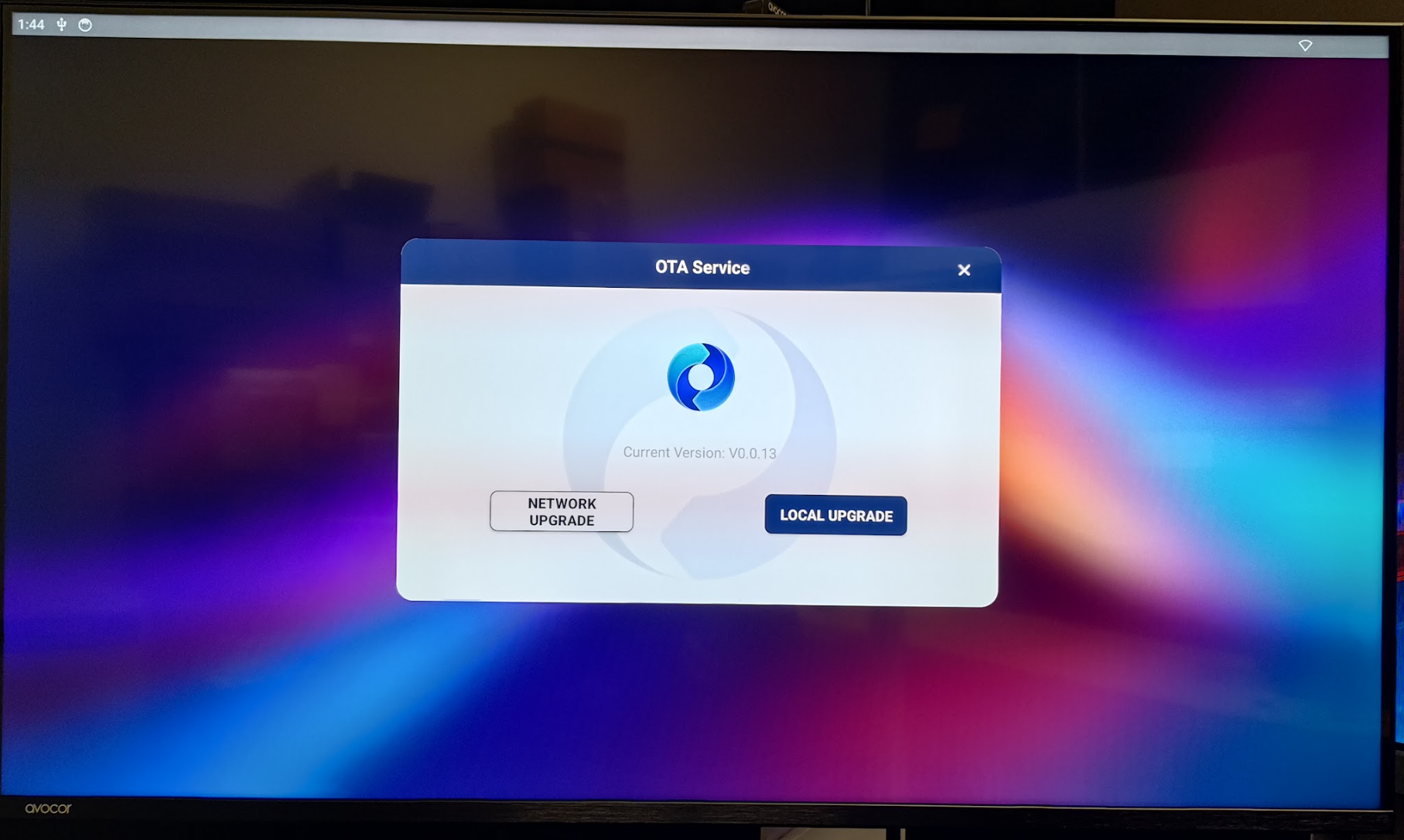

7. Click Local Upgrade

8. Wait for the firmware to copy to the internal hard drive

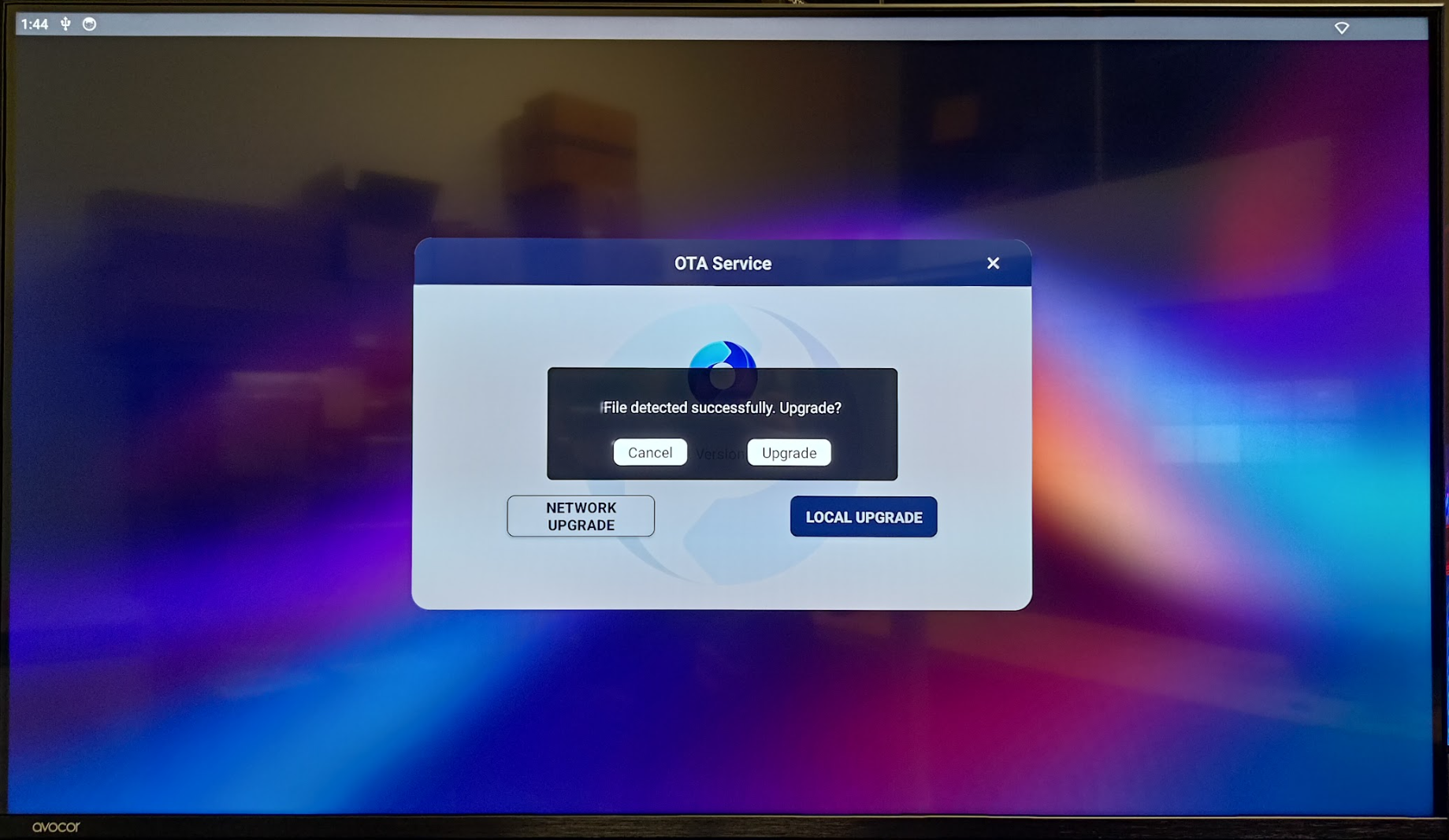

9. Click Upgrade

10. Wait for the firmware to be installed

11. The device will automatically reboot

12. If you see the "Change Project ID" popup, click reboot by pressing OK on the Avocor remote

13. The device will automatically reboot

14. In the Android Menu, perform a Factory Reset

> Click the Settings button on the Avocor remote

> Navigate to System 🠆 Reset options 🠆 Erase all data (factory reset)

> Click ERASE ALL DATA 🠆 ERASE ALL DATA

15. Once your device completes the factory reset, your firmware upgrade is complete!

Firmware and release notes

Click the version number of your desired firmware to download.

Release Date	Firmware Download	Notes
1/16/2025	0.1.0	Added Montage App Resolved issue where the display's white balance might be incorrect at boot Resolved issue where HDMI input may not display an image on screen
11/7/2024	0.0.19	Improved EDID Optimized OTA upgrade speed and stability Resolved several issues with android settings behavior Improved compatibility with enterprise WiFi networks Issues with CEC behavior resolved Resolved issue with remote control operation on HDMI 1 Resolved issue where image may not display on screen after changing source several times
10/7/2024	0.0.13	Resolved several issues with android settings behavior
8/26/2024	0.0.10 (unavailable)	Initial Release
