AVE 5530/40 & AVE 5550 Comparison

  • Updated

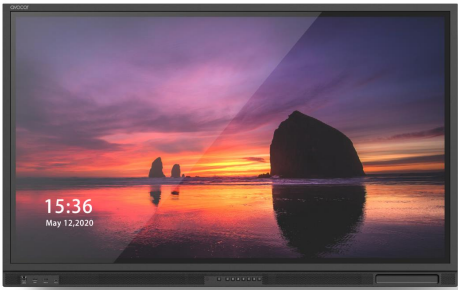

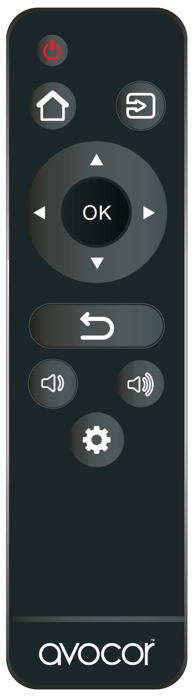

Please note that the main difference between the two displays are the front-facing buttons on the display, and the change to move towards our standard Avocor remote.

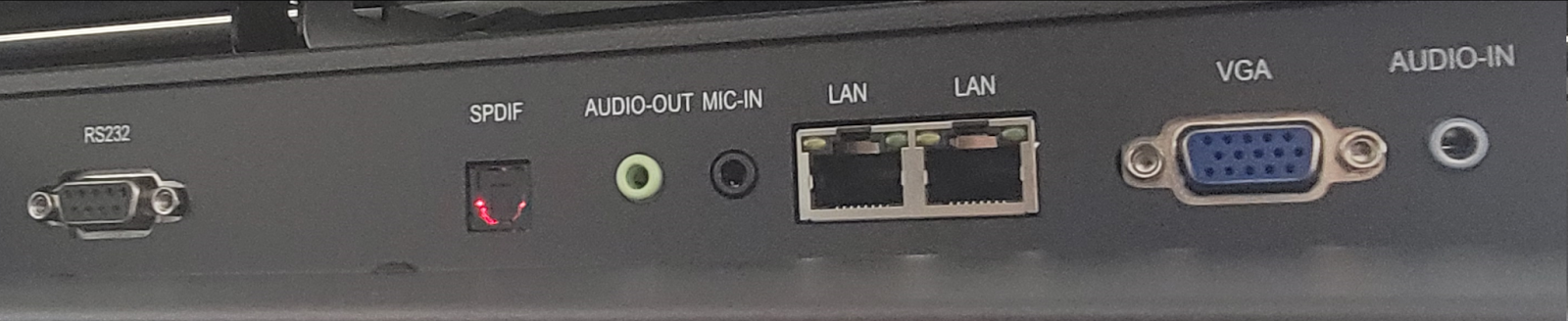

I/Os

In terms of Inputs/Outputs, the two displays are similar, but these are the main differences:

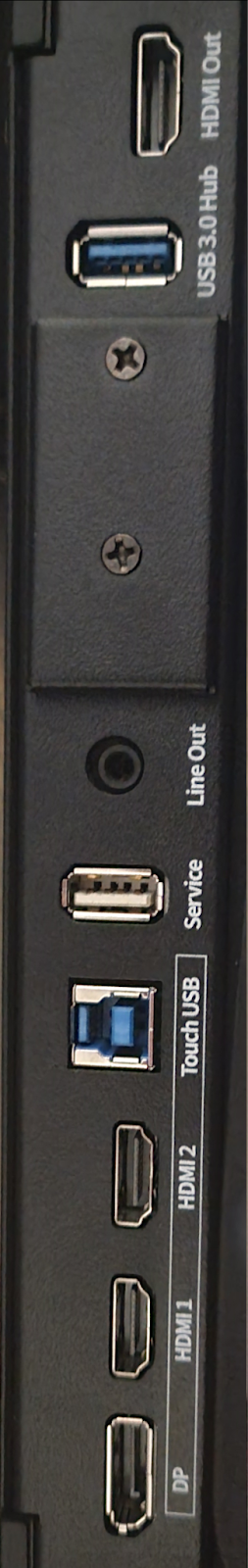

  • E30/E40 I/Os: less USB ports, and the USB-C on the front provides less power
    • Front Inputs
      • 1 x Type-C (45W PD)
      • 1 x USB-A 3.0 hub
    • Side Inputs
      • 1 x USB-B Touch
      • 1 x USB-A 3.0 Hub

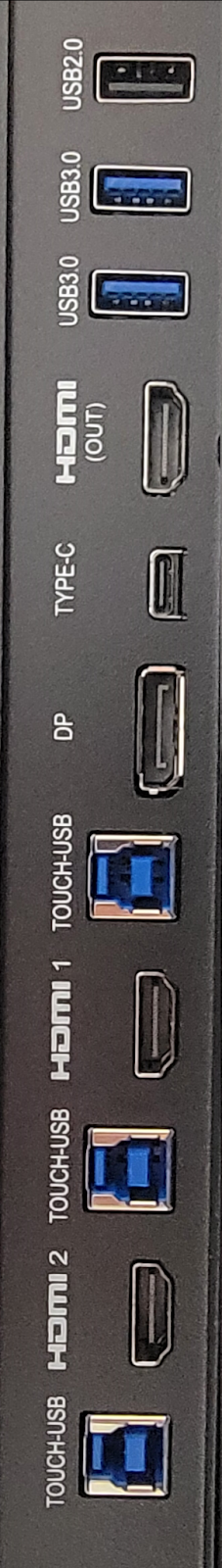

  • E50 I/Os: more USB ports, more USB Touch Inputs, USB-C on the side, and Front USB-C provides more power
    • Front Inputs
      • 1 x Type-C (65W PD)
      • 2 x USB-A 3.0 Hub
    • Side Inputs:
      • 1 x Type C (15W PD)
      • 3 x USB-B 3.0 Touch
      • 2 x USB-A 3.0 Hub

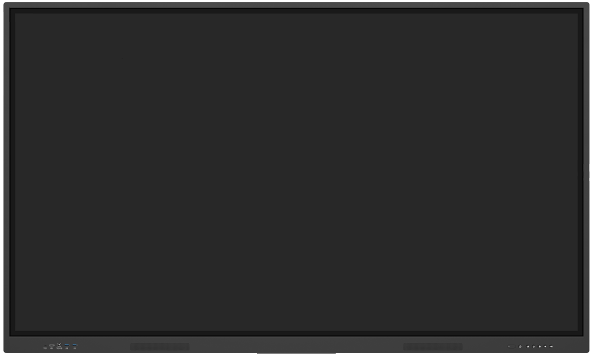

Mounting

In terms of differences between mounting the two displays, there is no difference. They are the same dimensions. The only difference is the weight.

  • E30: 32.5 kgs (71.65 lbs)
  • E40: 28 kgs (61.73 lbs)
  • E50: 29 kgs (63.93 lbs)



AVE-5530 & AVE-5540: E30 Datasheet & E40 Datasheet

  1. Size: 1286 x 802 x 78.4 mm (50.63 x 31.57 x 3.09 in)
  2. Wall Mount: 400 x 400 mm (15.75 x 15.75 in)
  3. Weight: E30: 32.5 kgs (71.65 lbs), E40: 28 kgs (61.73 lbs)



AVE-5550: E50 Datasheet

  1. Size: 1286 x 802 x 78.4 mm (50.63 x 31.57 x 3.09 inches)
  2. Wall Mount: 400 x 400mm (15.75 x 15.75 in)
  3. Weight: 29 kgs (63.93 lbs)
