This article contains installation instructions and firmware files for the Avocor E30 series interactive displays.

Firmware installation instructions

Checking your firmware version

Prior to installing firmware, you should check your current version in the display's UiQ on-screen menu by pressing the menu button on the UiQ Home screen, the front panel keypad on the display, or on your E-series remote control unit.

Once the side panel appears, tap the About menu tile, and check the Firmware Version section.

Over-the-air (OTA) updates

Required items

Connect the display to the network via:
- Ethernet/CAT5 (preferred)
- USB WiFi module

OTA update process

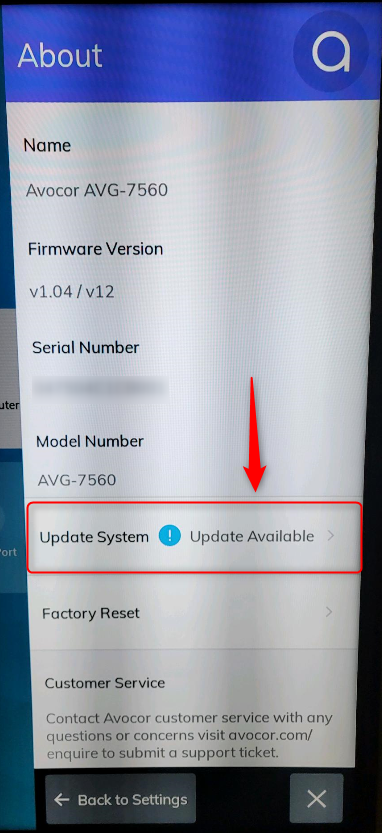

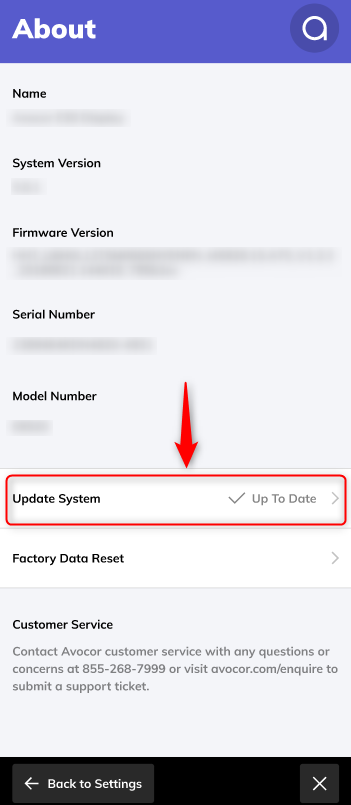

1. When a new firmware is pushed from our servers to the internet, you'll see "Update Available" on the Update System button - tap it to access the download page, where you can install firmware and Release Notes.

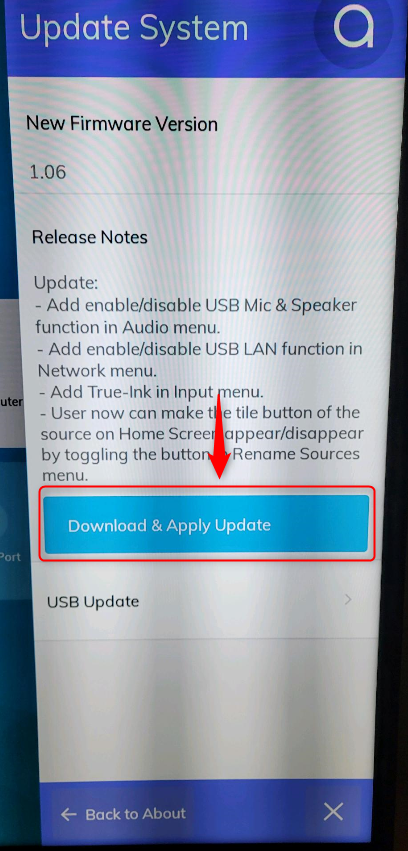

2. Tap "Download & Apply Update," if you wish to upgrade your unit's firmware. Another prompt will appear, tap Install to begin the update.

3. Your display will reboot automatically once the update is finished - DO NOT press the power button until after the unit reboots into a usable condition.

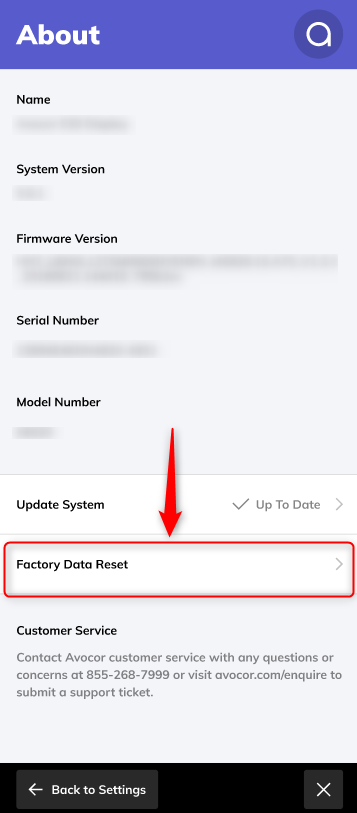

4. Run a Factory Reset from the About menu once the update is complete (see below); you should also notice your Firmware Version has changed.

USB updates

Required items

FAT32 formatted USB drive.

Standard USB update process (update_signed.zip)

This USB update method, using the update_signed.zip, is supported for V1.04 and on.

1. Load the update_signed.zip file onto your USB drive.

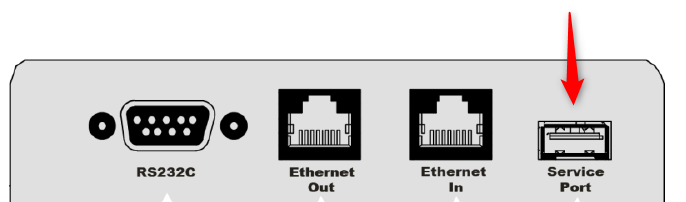

2. Plug the USB drive into the USB Service Port, near the LAN and RS232 Inputs un the underside of the display.

3. On the E-Series display, open the UiQ Settings>About, then select USB Update.

4. Once a compatible USB and firmware has been detected, the Insert USB button will highlight and change to Apply Update.

5. Select Apply Update to begin installing the firmware.

6. The update process is completed once the display reboots into a usable state - DO NOT interrupt the installation until it reboots.

7. Run a Factory Reset after completing installation.

USB Firmware and release notes

Click the version number to download.

Release Date	Firmware Ver.	Notes
6/12/2023	1.5.36	Fix color range Fix weather API and time zone Fix update FW through settings
6/6/2022	1.5.32	Modified Display Sleep timer to operate only on the Home screen. Fixed the serial command “IPC Control.” Added new power logic: Sleep mode – low power state that allows for wake on touch or connection from an active signal. Adjusted “OPS Always On” power logic for better performance. “Wi-Fi” corrected to “WiFi” under Network settings.
11/26/2021	1.5.29	Add Wallpaper Import & Export function in UiQ. Added additional languages in UiQ. Fixed no cursor in Power On time selection page when using the RCU.
11/20/2020	1.5.27	OPS no longer shuts down with "soft" power-off (power button). Completed the serial control command table.
08/20/2020	1.5.25	Release version.
