This article contains a guide and download for HDCP firmware for Avocor 10th generation OPS modules.

If you experience flickering of the image signal from your OPS module, this firmware update will resolve the issue.

Install Instructions

1. Download the .zip file and extract it in the OPS's file directory.

2. Run the executable file "IT6563_FwUpdate.exe"

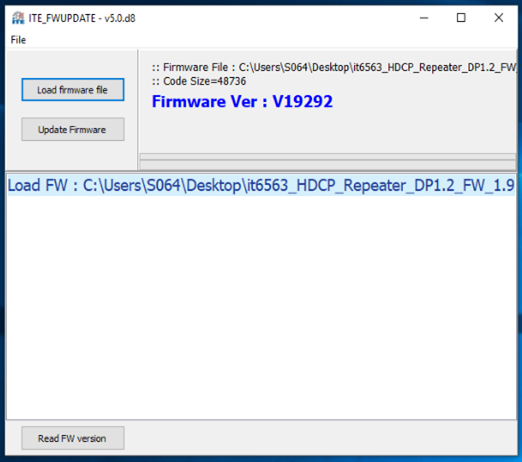

3. Click Read FW Version first, to confirm the currently installed HDCP firmware version. The latest version is v19292. This update is recommended if your version is lower.

4. Click Load firmware file and select the "it6563FN_HDCP_Repeater_V19292.bin" file.

4. Click "Update Firmware."

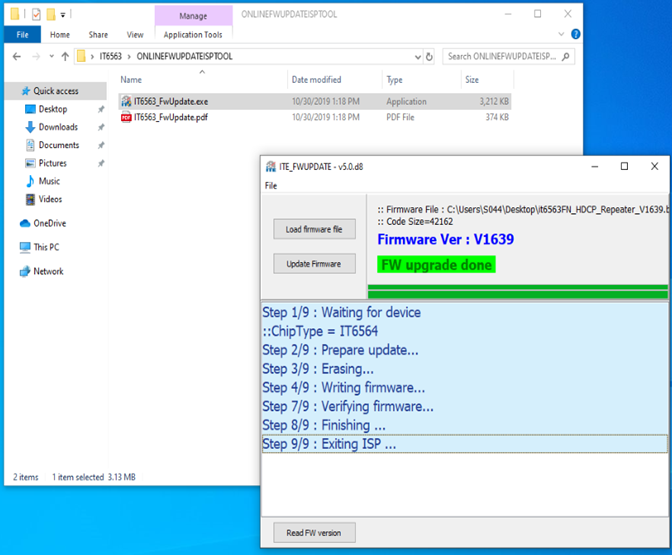

5. Once you see "FW upgrade done," reboot the OPS and you're done!

Download

Compatible Model:	Download
AVC-OPSi5-G10 AVC-OPSi7-G10	Gen 10 HDCP Firmware
